Focus
FOCUS 14 와 FOCUS 16 은 사용의 용이함과 효율면에서 코일철근 가공기의 이상적인 해법이다.
기기의 유연성 생산성을 바탕으로 항상 고품질의 제품을 보장해 준다.
다양한 FOCUS 모델은 코일철근 4 mm ~ 16 mm 까지 작업이 가능하며, 한변 최대
12 M 길이 내에서 형상,스터럽, 한번 이상의 절곡이 가능하다.
동일직경 (최대 13 mm) 두가닥이 가능하고, 16 mm 는 한가닥 작업이 가능하다.
COIL ∅6 - ∅16 mm (#3-#5)
• Double wire
• AFS 3 (Advanced Feeding System) Generation III
• Automatic straightening roller control
• Bending pins accordingly to national rules
• 3D press unit (optional)

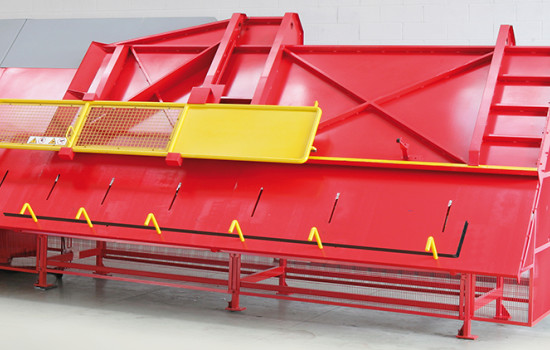

Focus 14
STIRRUPS FROM COIL
COIL ∅6 - ∅14 mm (#3-#4)
• Double wire up to ∅13 mm (#4)
• AFS 3 (Advanced Feeding System) Generation III
• Automatic straightening roller control
• Bending pins accordingly to national rules
• 3D press unit (optional)
Request information

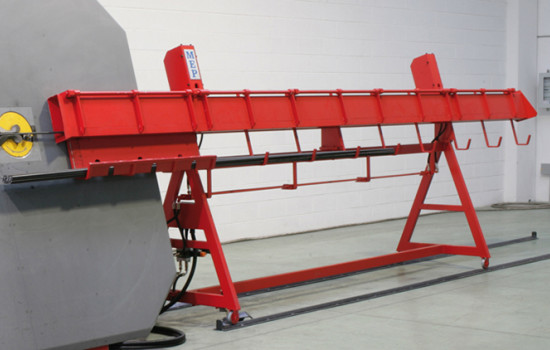

Focus 16
STIRRUPS FROM COIL
COIL ∅8 - ∅16 mm (#3-#5)
• Double wire up to ∅13 mm (#4)
• AFS 3 (Advanced Feeding System) Generation III
• Automatic straightening roller control
• Bending pins accordingly to national rules
• 3D press unit (optional)
Request information

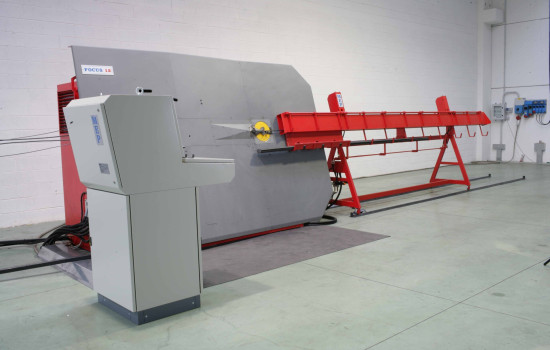

Focus 12
A NEW GENERATION
The FOCUS 12 is the ideal solution in the field of automatic coil stirrup benders for its ease of use and high performance. Flexibility, productivity and product quality is always guaranteed.
FLEXIBILITY
Small or large stirrups, straightened or bent bars, as well as circles and spirals are fabricated thanks to a complete array of accessories, able to satisfy the widest range of productive requirements.
QUALITY AND PRODUCTIVITY
The FOCUS 12 is a user friendly automatic stirrup bender that provides superior quality of finished products. The combined action of an exclusive series of patented devices minimizes the time for setup adjustments and reduces drastically the amount of discarded products. A drive and control system, based on the latest generation technology, grants to reach unparalleled levels of productivity per hour.
AN INNOVATIVE SOLUTION
The Advanced Feeding System is a straightening system that eliminates the effect of the wire rotation on its own axis. Therefore, closed stirrups and straight bars can always be produced. The independent control of the traction on two wires, as well as the increased surface of contact with the large infeed wheel, eliminates any difference in length between the two wires. Thanks to this design and to the consequent lower pressure applied on the steel material, the coil ribs are far less deformed by the straightening process. The lifetime of the infeed roller themselves is about 8 times longer than in case of traditional straightening methods.

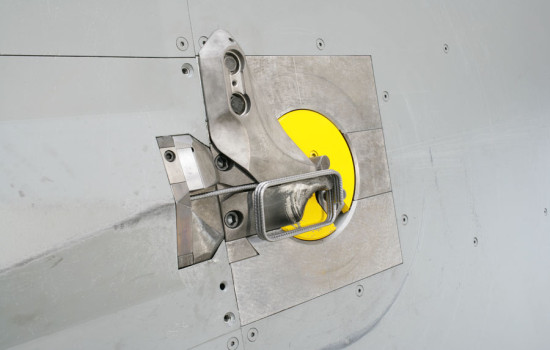

Focus 8 HS
𝐅𝐎𝐂𝐔𝐒 𝟖 𝐇𝐒
The FOCUS 8 HS is the ideal solution in the field of automatic coil stirrup benders for its ease of use and high performance. Flexibility, productivity and product quality are always guaranteed.
𝟑 𝐖𝐈𝐑𝐄𝐒: 𝐅𝐋𝐄𝐗𝐈𝐁𝐈𝐋𝐈𝐓𝐘 𝐀𝐍𝐃 𝐏𝐑𝐎𝐃𝐔𝐂𝐓𝐈𝐎𝐍
Small or large stirrups, straightened or bent bars, as well as circles and spirals are fabricated thanks to a complete array of accessories, able to satisfy the widest range of productive requirements. The simultaneous use of three wires ensures unrivalled productivity.
𝐐𝐔𝐀𝐋𝐈𝐓𝐘 𝐀𝐍𝐃 𝐏𝐑𝐎𝐃𝐔𝐂𝐓𝐈𝐕𝐈𝐓𝐘
The FOCUS 8 HS is a user friendly automatic stirrup bender that provides superior quality of finished products. The combined action of an exclusive series of patented devices minimizes the time for setup adjustments and reduces drastically the amount of discarded products. A drive and control system, based on the latest generation technology, grants to reach unparalleled levels of productivity per hour.
𝐀𝐍 𝐈𝐍𝐍𝐎𝐕𝐀𝐓𝐈𝐕𝐄 𝐒𝐎𝐋𝐔𝐓𝐈𝐎𝐍
The Advanced Feeding System is a straightening system that eliminates the effect of the wire rotation on its own axis. Therefore, closed stirrups and straight bars can always be produced. The independent control of the traction on the three wires, as well as the increased surface of contact with the large infeed wheel, eliminates any difference in length between the three wires. Thanks to this design and to the consequent lower pressure applied on the steel material, the coil ribs are far less deformed by the straightening process. The lifetime of the infeed roller themselves is about 8 times longer than in case of traditional straightening methods.
𝐂𝐎𝐍𝐓𝐑𝐎𝐋𝐋𝐄𝐃 𝐒𝐓𝐑𝐀𝐈𝐆𝐇𝐓𝐄𝐍𝐈𝐍𝐆
The combined action between the Advanced Feeding System System and the dynamic visualization of rollers’ position allows a simple working of three wires simultaneously.
Focus 12 N

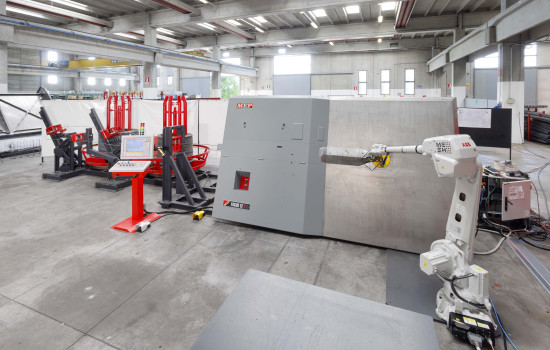

NEW - FOCUS 12 N
Stirrups machine
Coil Single Wire from ∅4 - ∅13 mm / #3 - #4
• (Advanced Feeding System) Generation IV small size
• Max. infeed speed up to 1.8 m/s
• Double wire up to Ø10 (#3)
• Indipendent pressure control on the two wires
• New compact shear with universal blades
• Compatible with high biodegradable oil
• Kit power consumption
• TwinSense ready
• Up to 5T coils
