Planet
SHAPE FORMING AND STIRRUP BENDING FROM COIL

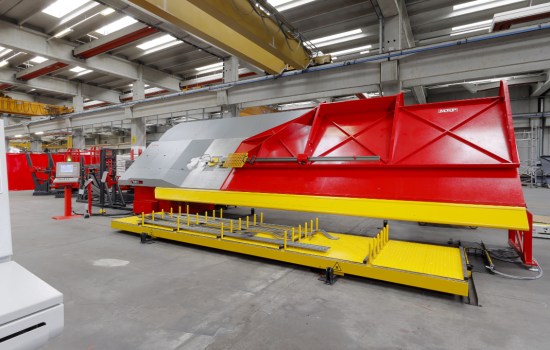

The PLANET Plus machines represents the highest technological development in the field of multi-unctional off-coil machinery (shape forming, stirrup bending, wire straightening and radius forming).
Advanced functionalities for a wide range of needs:
Shape forming: Create shapes with one or more bends on both sides.
Stirrup bending: Produce medium and large-sized flanges with the utmost precision.
Straightening: Straighten coiled round bars quickly and reliably.
Calendering: Produce calendered elements, even with variable bending radii, for maximum flexibility.
Circle creation: Produce circles automatically for an optimized workflow.
Unparalleled advantages:
Exceptional versatility: A wide range of accessories to meet the most diverse production needs.
Complete automation: Eliminates manual operations, ensuring an optimized and continuous work cycle.
AFS (Advanced Feeding System) and electronic pointer: Automatically manage the individual straightening of round bars for greater precision.
Guaranteed safety: Eliminates manual intervention during the bending phase, protecting the operator.
Single bending unit: Simplified and faster work cycle for increased efficiency.
Exclusive pins and devices: Expands the range of possible processes, even for complex shapes.
Innovative workstation design: Facilitates the production of large-sized brackets and profiles, the collection of the finished product, and its conveying to collection systems.
Unlimited dimensional flexibility: Works on a wide range of dimensions and shapes, even complex ones, to meet any requirement.
Variable radius bending software: "Virtual pin" function for large radius bends for maximum design freedom.
The PLANET Plus guarantees maximum flexibility, productivity, and quality of the finished product.
Planet 22 Plus W Multiradius
SHAPE FORMING AND STIRRUP BENDING FROM COIL
COIL ∅10 - ∅22 mm (#3 - #7)
• Double wire up to ∅16 mm (#5)
• Rollers are equipped with 3 grooves: two are dedicated to the simultaneous processing of 2 wires (up to 16 mm (#5)) and one for single wire (up to 22 mm (#7))
• AFS 3 (Advanced Feeding System) Generation III
• The pressure exerted on each individual wire
• Multi-wire pre-feeder
• Motorised collection trolley, belt conveyor and chain collector conveyor are available
• Bending pins accordingly to international rules
• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t
• The automatic "Multiradius" method for curved products with multiple radii of curvature and large rings
Request information
Planet 22 Plus Multiradius
SHAPE FORMING AND STIRRUP BENDING FROM COIL
COIL ∅10 - ∅22 mm (#3 - #7)
Double wire up to ∅16 mm (#5)
AFS 3 (Advanced Feeding System) Generation III
The pressure exerted on each individual wire
Complete power unit with winch, portable straightening unit and motorized pre-driving roller for pre-straightening
Motorised collection trolley, belt conveyor and chain collector conveyor are available
Bending pins accordingly to international rules
The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t
Ring forming tool (optional) up to Ø20 mm (#6)
PLANET 22 Plus Press 3D
SHAPE FORMING AND STIRRUP BENDING FROM COIL
COIL ∅10 - ∅22 mm (#3 - #7)
• Double wire up to ∅16 mm (#5)
• AFS 3 (Advanced Feeding System) Generation III
• The pressure exerted on each individual wire
• Complete power unit with winch, portable straightening unit and motorized pre-driving roller for pre-straightening
• Motorised collection trolley, belt conveyor and chain collector conveyor are available
• Bending pins accordingly to international rules
• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t
• 3D press
Request information
PLANET 22 Plus W Press 3D
SHAPE FORMER AND STIRRUP BENDER FROM COIL
COIL ∅10 - ∅22 mm (#3 - #7)
• Double wire up to ∅16 mm (#5)
• Rollers are equipped with 3 grooves: two are dedicated to the simultaneous processing of 2 wires (up to 16 mm (#5)) and one for single wire (up to 22 mm (#7))
• AFS 3 (Advanced Feeding System) Generation III
• The pressure exerted on each individual wire
• Multi-wire pre-feeder
• Motorised collection trolley, belt conveyor and chain collector conveyor are available
• Bending pins accordingly to international rules
• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t
• Press 3D
Request information
PLANET 16 Advanced
SHAPE FORMING AND STIRRUP BENDING FROM COIL
COIL ∅8 - ∅16 mm (#3 - #5)
• Double wire up to ∅12 mm (#4)
• Option double wire up to Ø14 mm
• Multiwire pre-feeding unit
• New compact shear
• AFS 4 (Advanced Feeding System) Generation IV
• Independent pressure control for each wire
• A wide variety collecting device for stirrup and shapes are available
• Bending pins accordingly to national rules
• Energy saving and efficiency
Request information
PLANET 16 Advanced Press 3D
SHAPE FORMING AND STIRRUP BENDING FROM COIL
COIL ∅8 - ∅16 mm (#3 - #5)
• Double wire up to ∅12 mm (#4)
• Option double wire up to Ø14 mm
• Optional Press 3D up to Ø16 mm (#5)
• Multiwire pre-feeding unit
• New compact shear
• AFS 4 (Advanced Feeding System) Generation IV
• Independent pressure control for each wire
• A wide variety collecting device for stirrup and shapes are available
• Bending pins accordingly to national rules
• Energy saving and efficiency
Request information
Planet 26 Plus
SHAPE FORMER AND STIRRUP BENDER FROM COIL
COIL ∅10 - ∅26 mm (#3 - #8)
• Single wire
• AFS: pressure control on the two wires individually
• The 2-groove rollers characterized by different profiles and sizes
• Multi-wire pre-feeder
• Multi-wire pre-feeder (single wire/double wire version)
• Motorised collection trolley, belt conveyor and chain collector conveyor are available
• Bending pins accordingly to international rules
• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t
Request information
Planet 22 Plus W
SHAPE FORMING AND STIRRUP BENDING FROM COIL
COIL ∅10 - ∅22 mm (#3 - #7)
• Double wire up to ∅16 mm (#5)
• Rollers are equipped with 3 grooves: two are dedicated to the simultaneous processing of 2 wires (up to 16 mm (#5)) and one for single wire (up to 22 mm (#7))
• AFS 3 (Advanced Feeding System) Generation III
• The pressure exerted on each individual wire
• Multi-wire pre-feeder
• Motorised collection trolley, belt conveyor and chain collector conveyor are available
• Bending pins accordingly to international rules
• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t
Request information
Planet 26 Plus Stainless Steel
SHAPE FORMER AND STIRRUP BENDER FROM COIL
COIL ∅10 - ∅26 mm (#3 - #8)
• Single wire
• The processing of stainless steel INOX in coil
• AFS: pressure control on the two wires individually
• The 2-groove rollers characterized by different profiles and sizes
• Multi-wire pre-feeder
• Motorised collection trolley, belt conveyor and chain collector conveyor are available
• Bending pins accordingly to international rules
• The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t
Request information
Planet 22 Plus
SHAPE FORMING AND STIRRUP BENDING FROM COIL
COIL ∅10 - ∅22 mm (#3 - #7)
Double wire up to ∅16 mm (#5)
AFS 3 (Advanced Feeding System) Generation III
The pressure exerted on each individual wire
Complete power unit with winch, portable straightening unit and motorized pre-driving roller for pre-straightening
Motorised collection trolley, belt conveyor and chain collector conveyor are available
Bending pins accordingly to international rules
The payoffs provide automatic motorization and are available in 2 versions: for rolls up to 5 t or up to 8,3 t
