RF
OFF COIL WIRE STRAIGHTENERS
COIL ∅5 - ∅20 mm
RF series straightening machines are characterised by their ease of use, robustness and ability to guarantee a high quality finished product. These features make them ideal for use in a variety of contexts, even in unprotected environments.
Versatility for every need:
Capacity to straighten and cut-to-length wire up to 12 metres long.
Available in different versions for processing reels in diameters from 5 to 20 mm.
Customisable production modes:
High productivity: RF 10 and RF 20 for the production of same length wires.
Flexibility for single elements: RF 10M and RF 20M for cutting wires at variable lengths.
Precise control and maximum efficiency:
Feed speed adjustable according to the diameter of the wire to be worked.
“Multiprogram” versions (RF 10M and RF 20M):
Roller pre-straightener group for greater precision.
Set of two opposing rollers with encoder for precise measuring of wire.
Electronic programming of cutting lengths with pre-loaded cutting sequences.
Versions RF 10 and RF 20:
Channel with manually adjustable guide support for cutting to size.

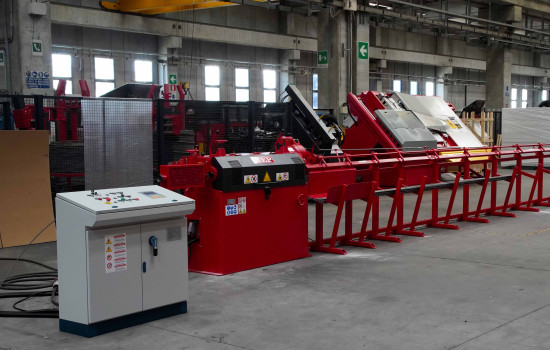

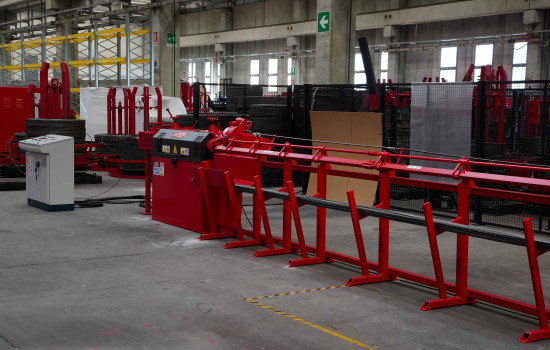

The bars produced are cut to size and transported to a collection position below.
The RF series straightening machines are the ideal solution for those looking for a reliable, versatile product that guarantees high quality results.
RF 10
- Simplicity tailor-made
The RF series straightening machines perform cut-to-length and wire straightening up to 12 meters. Its ‘user friendly’, sturdy design, and the high quality of the finished product, make the RF a reliable tool and ideal for use in harsh environments.
- Flexibility
The RF family is able to process wire from coil with a diameter range of 5 to 20 mm. This outstanding range allows production to be set according to specific needs, such as focusing on high productivity (RF 10 - RF 20 same length) or flexibility per element (RF 10M - RF 20M of variable lengths).
- Long-term reliability

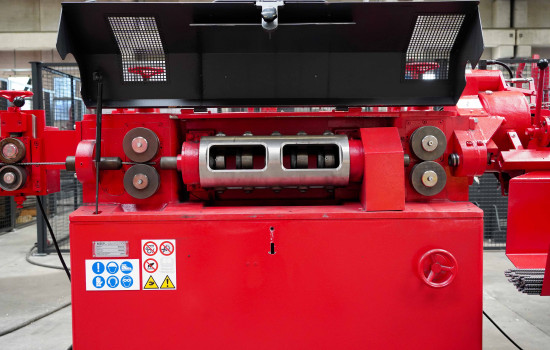

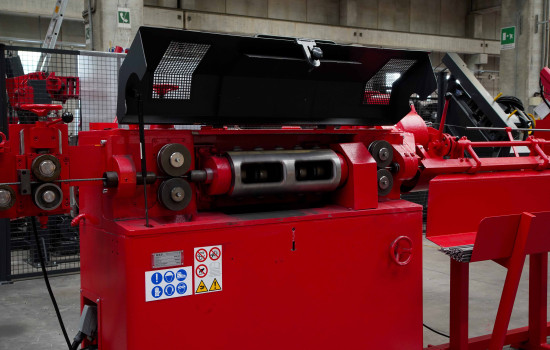

The straightening process is carried out by means of a spinning “rotor” unit, composed of “Widia” parts, well known for their extreme hardness and durability. The rotor is easily adjusted according to the diameter and quality of the raw wire feed, this ensures that finished product is straight and accurate, meeting the customers’ expectations. The rotor action provides two different speeds for the models RF 20 and RF 20M, depending on the different diameters to be processed. The driving of the wires is ensured by two groups of rollers, which are positioned at the ends of the “rotor” that allow positive dragging of the rebar, ensuring constant speed and straightening quality. The RF family allows to vary the feed speed of the rebar as a function of the different diameters to be produced, to gain the best results.
Other features:
- Programmable cutting sequence
- Easy to use
- Rapid cut
- Collection pocket
RF 10-10M
OFF COIL WIRE STRAIGHTENER
COIL ∅5-∅10 mm
• Programmable cutting sequence with “Multiprogram”
• Electronic programming of the cutting length is based on pre-loaded cutting sequences.
• Processing wire in coils with variable lengths
• Static shear
Request information
RF 20 - 20M
OFF COIL WIRE STRAIGHTENER
COIL ∅5 - ∅20 mm
• Programmable cutting sequence with “Multiprogram”
• Electronic programming of the cutting length is based on pre-loaded cutting sequences.
• Processing wire in coils with variable lengths
• Static shear
Request information
RF - 20
OFF COIL WIRE STRAIGHTENER
COIL ∅5 - ∅20 mm
• Roller pre-straightener group
• Variation of wire feed speed according to the different diameters to be produced
• Processing wire in coils with the same length
• Run-out channel equipped with a guide bracket with mechanical stop for manual adjustment of cutting lengths
• Static shear
Request information
