Focus
数控盘条钢筋弯箍机
FOCUS 12于2005年推出，是这个系列的基础款，目前已经更新到第二代，生产了700多台。
FOCUS 14和FOCUS 16是自动盘条弯箍机领域的理想解决方案，具有易于使用和性能优异的特点。始终保证获得灵活性、生产率和高产品质量。
不同版本的FOCUS能够加工直径4至16 毫米的盘条。
它们可以生产板筋和箍筋，直条或单头一次或多次弯曲的成型，最大长度为12 米。
在批量生产（相同直径的双线，最大直径13 毫米）以及单线加工（单根直径最大16 毫米）中，都保证了高生产率。
COIL ∅6 - ∅16 mm (#3-#5)
• Double wire
• AFS 3 (Advanced Feeding System) Generation III
• Automatic straightening roller control
• Bending pins accordingly to national rules
• 3D press unit (optional)
Focus 14
STIRRUPS FROM COIL
COIL ∅6 - ∅14 mm (#3-#4)
• Double wire up to ∅13 mm (#4)
• AFS 3 (Advanced Feeding System) Generation III
• Automatic straightening roller control
• Bending pins accordingly to national rules
• 3D press unit (optional)
Request information
Focus 16
STIRRUPS FROM COIL
COIL ∅8 - ∅16 mm (#3-#5)
• Double wire up to ∅13 mm (#4)
• AFS 3 (Advanced Feeding System) Generation III
• Automatic straightening roller control
• Bending pins accordingly to national rules
• 3D press unit (optional)
Request information
Focus 12
A NEW GENERATION
The FOCUS 12 is the ideal solution in the field of automatic coil stirrup benders for its ease of use and high performance. Flexibility, productivity and product quality is always guaranteed.
FLEXIBILITY
Small or large stirrups, straightened or bent bars, as well as circles and spirals are fabricated thanks to a complete array of accessories, able to satisfy the widest range of productive requirements.
QUALITY AND PRODUCTIVITY
The FOCUS 12 is a user friendly automatic stirrup bender that provides superior quality of finished products. The combined action of an exclusive series of patented devices minimizes the time for setup adjustments and reduces drastically the amount of discarded products. A drive and control system, based on the latest generation technology, grants to reach unparalleled levels of productivity per hour.
AN INNOVATIVE SOLUTION
The Advanced Feeding System is a straightening system that eliminates the effect of the wire rotation on its own axis. Therefore, closed stirrups and straight bars can always be produced. The independent control of the traction on two wires, as well as the increased surface of contact with the large infeed wheel, eliminates any difference in length between the two wires. Thanks to this design and to the consequent lower pressure applied on the steel material, the coil ribs are far less deformed by the straightening process. The lifetime of the infeed roller themselves is about 8 times longer than in case of traditional straightening methods.
Focus 8 HS
𝐅𝐎𝐂𝐔𝐒 𝟖 𝐇𝐒
The FOCUS 8 HS is the ideal solution in the field of automatic coil stirrup benders for its ease of use and high performance. Flexibility, productivity and product quality are always guaranteed.
𝟑 𝐖𝐈𝐑𝐄𝐒: 𝐅𝐋𝐄𝐗𝐈𝐁𝐈𝐋𝐈𝐓𝐘 𝐀𝐍𝐃 𝐏𝐑𝐎𝐃𝐔𝐂𝐓𝐈𝐎𝐍
Small or large stirrups, straightened or bent bars, as well as circles and spirals are fabricated thanks to a complete array of accessories, able to satisfy the widest range of productive requirements. The simultaneous use of three wires ensures unrivalled productivity.
𝐐𝐔𝐀𝐋𝐈𝐓𝐘 𝐀𝐍𝐃 𝐏𝐑𝐎𝐃𝐔𝐂𝐓𝐈𝐕𝐈𝐓𝐘
The FOCUS 8 HS is a user friendly automatic stirrup bender that provides superior quality of finished products. The combined action of an exclusive series of patented devices minimizes the time for setup adjustments and reduces drastically the amount of discarded products. A drive and control system, based on the latest generation technology, grants to reach unparalleled levels of productivity per hour.
𝐀𝐍 𝐈𝐍𝐍𝐎𝐕𝐀𝐓𝐈𝐕𝐄 𝐒𝐎𝐋𝐔𝐓𝐈𝐎𝐍
The Advanced Feeding System is a straightening system that eliminates the effect of the wire rotation on its own axis. Therefore, closed stirrups and straight bars can always be produced. The independent control of the traction on the three wires, as well as the increased surface of contact with the large infeed wheel, eliminates any difference in length between the three wires. Thanks to this design and to the consequent lower pressure applied on the steel material, the coil ribs are far less deformed by the straightening process. The lifetime of the infeed roller themselves is about 8 times longer than in case of traditional straightening methods.
𝐂𝐎𝐍𝐓𝐑𝐎𝐋𝐋𝐄𝐃 𝐒𝐓𝐑𝐀𝐈𝐆𝐇𝐓𝐄𝐍𝐈𝐍𝐆
The combined action between the Advanced Feeding System System and the dynamic visualization of rollers’ position allows a simple working of three wires simultaneously.

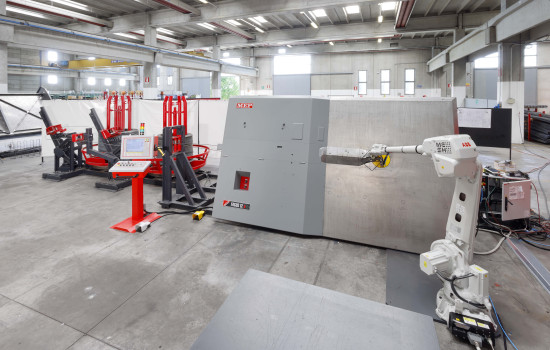

Focus 12 N
NEW - FOCUS 12 N
Stirrups machine
Coil Single Wire from ∅4 - ∅13 mm / #3 - #4
• (Advanced Feeding System) Generation IV small size
• Max. infeed speed up to 1.8 m/s
• Double wire up to Ø10 (#3)
• Indipendent pressure control on the two wires
• New compact shear with universal blades
• Compatible with high biodegradable oil
• Kit power consumption
• TwinSense ready
• Up to 5T coils
