Focus

STIRRUPS FROM COIL

COIL ∅4* - ∅16 mm

FOCUS automatic off-coil stirrup machines are the ideal solution for simplicity of use and exceptional performance.

Unmatched versatility:

• Stirrups of all sizes, straight or shaped bars with one or more bends on one side.

• Optional 3D shaping device creates complex 3D shapes with ease.

• Specialized pin produces tiny stirrups using two wires simultaneously.

• A wide range of optional pins is available, including spiral pins, circle pins, and bending pins.

Superior performance:

• The AFS (Advance Feeding System) anti-rotation and straightening system ensures closed brackets and perfectly straight bars.

• The innovative single-plane roller configuration facilitates straightening control, boosting productivity and reducing scrap.

• A unique software feature enables bends with variable curvature radii using the same central pin, ideal for large bend radii.

FOCUS is the perfect choice for companies seeking the pinnacle of automatic wire bending.

* Available as an option

Focus 14

STIRRUP FROM COIL

COIL ∅6 - ∅14 mm

  • Double wire up to ∅13 mm (#4)

  • AFS 3 (Advanced Feeding System) Generation III

  • Automatic straightening roller control

  • Bending pins conform to international standards

  • 3D press unit (optional)

Request information

Focus 16

STIRRUP FROM COIL

COIL ∅8 - ∅16 mm

• Double wire up to ∅13 mm (#4)

AFS 3 (Advanced Feeding System) Generation III

• Automatic straightening control system

• International standard bending pins

3D press unit (optional)

Request information

Focus 12

A NEW GENERATION

The FOCUS 12 is the ideal solution in the field of automatic coil stirrup benders for its ease of use and high performance. Flexibility, productivity and product quality is always guaranteed.

FLEXIBILITY
Small or large stirrups, straightened or bent bars, as well as circles and spirals are fabricated thanks to a complete array of accessories, able to satisfy the widest range of productive requirements.

QUALITY AND PRODUCTIVITY

The FOCUS 12 is a user friendly automatic stirrup bender that provides superior quality of finished products. The combined action of an exclusive series of patented devices minimizes the time for setup adjustments and reduces drastically the amount of discarded products. A drive and control system, based on the latest generation technology, grants to reach unparalleled levels of productivity per hour.

AN INNOVATIVE SOLUTION

The Advanced Feeding System is a straightening system that eliminates the effect of the wire rotation on its own axis. Therefore, closed stirrups and straight bars can always be produced. The independent control of the traction on two wires, as well as the increased surface of contact with the large infeed wheel, eliminates any difference in length between the two wires. Thanks to this design and to the consequent lower pressure applied on the steel material, the coil ribs are far less deformed by the straightening process. The lifetime of the infeed roller themselves is about 8 times longer than in case of traditional straightening methods.

Request information

Focus 8 HS

𝐅𝐎𝐂𝐔𝐒 𝟖 𝐇𝐒

The FOCUS 8 HS is the ideal solution in the field of automatic coil stirrup benders for its ease of use and high performance. Flexibility, productivity and product quality are always guaranteed.

𝟑 𝐖𝐈𝐑𝐄𝐒: 𝐅𝐋𝐄𝐗𝐈𝐁𝐈𝐋𝐈𝐓𝐘 𝐀𝐍𝐃 𝐏𝐑𝐎𝐃𝐔𝐂𝐓𝐈𝐎𝐍

Small or large stirrups, straightened or bent bars, as well as circles and spirals are fabricated thanks to a complete array of accessories, able to satisfy the widest range of productive requirements. The simultaneous use of three wires ensures unrivalled productivity.

𝐐𝐔𝐀𝐋𝐈𝐓𝐘 𝐀𝐍𝐃 𝐏𝐑𝐎𝐃𝐔𝐂𝐓𝐈𝐕𝐈𝐓𝐘

The FOCUS 8 HS is a user friendly automatic stirrup bender that provides superior quality of finished products. The combined action of an exclusive series of patented devices minimizes the time for setup adjustments and reduces drastically the amount of discarded products. A drive and control system, based on the latest generation technology, grants to reach unparalleled levels of productivity per hour.

𝐀𝐍 𝐈𝐍𝐍𝐎𝐕𝐀𝐓𝐈𝐕𝐄 𝐒𝐎𝐋𝐔𝐓𝐈𝐎𝐍

The Advanced Feeding System is a straightening system that eliminates the effect of the wire rotation on its own axis. Therefore, closed stirrups and straight bars can always be produced. The independent control of the traction on the three wires, as well as the increased surface of contact with the large infeed wheel, eliminates any difference in length between the three wires. Thanks to this design and to the consequent lower pressure applied on the steel material, the coil ribs are far less deformed by the straightening process. The lifetime of the infeed roller themselves is about 8 times longer than in case of traditional straightening methods.

𝐂𝐎𝐍𝐓𝐑𝐎𝐋𝐋𝐄𝐃 𝐒𝐓𝐑𝐀𝐈𝐆𝐇𝐓𝐄𝐍𝐈𝐍𝐆

The combined action between the Advanced Feeding System System and the dynamic visualization of rollers’ position allows a simple working of three wires simultaneously.

Request information

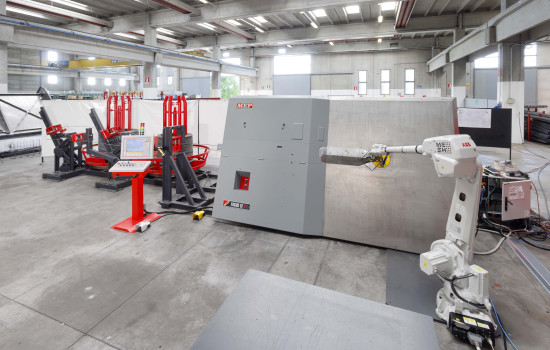

Focus 12 N

NEW - FOCUS 12 N
Stirrups machine
Coil Single Wire from ∅4 - ∅13 mm / #3 - #4

• (Advanced Feeding System) Generation IV small size

• Max. infeed speed up to 1.8 m/s

• Double wire up to Ø10 (#3)

• Indipendent pressure control on the two wires

• New compact shear with universal blades

• Compatible with high biodegradable oil

• Kit power consumption

• TwinSense ready

• Up to 5T coils
